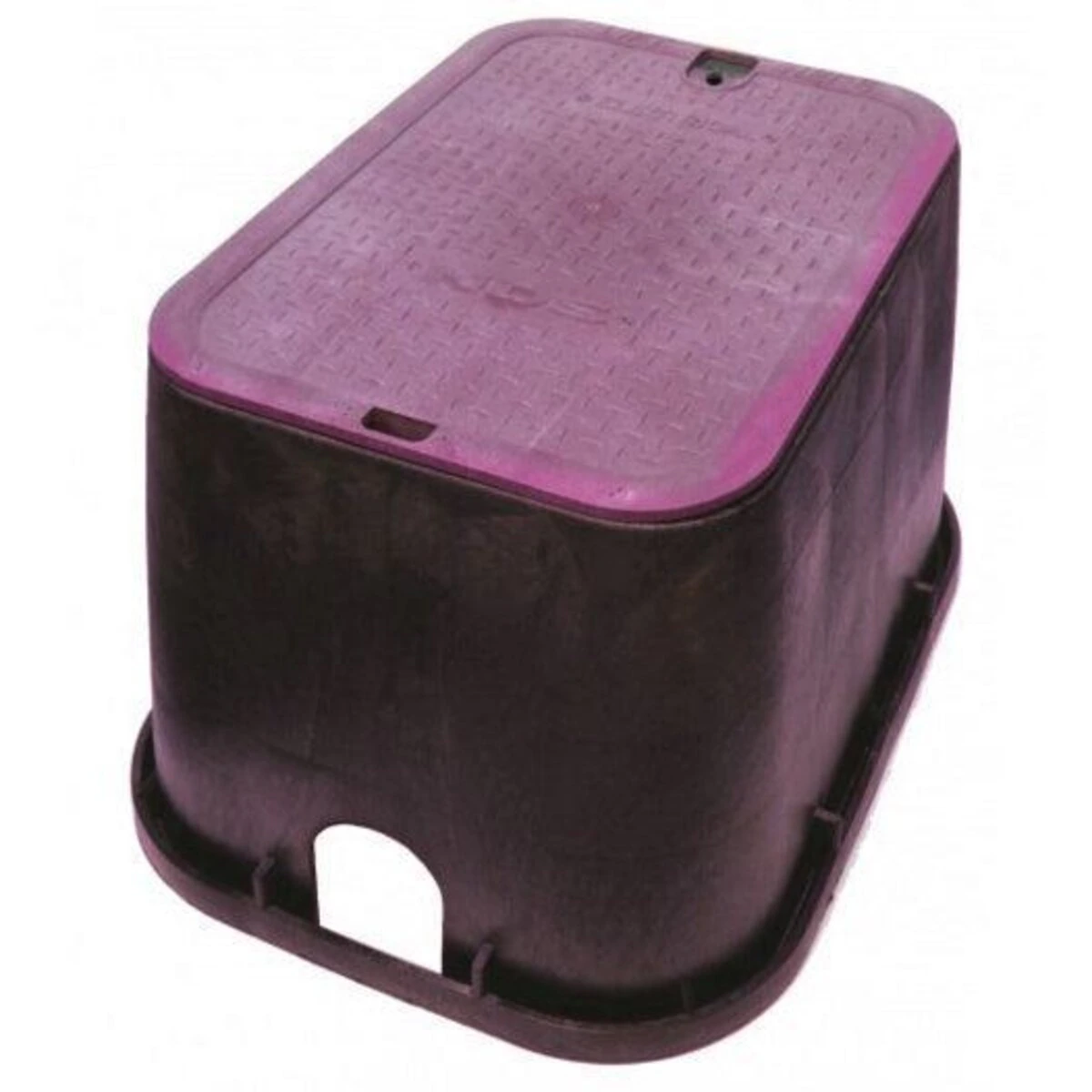

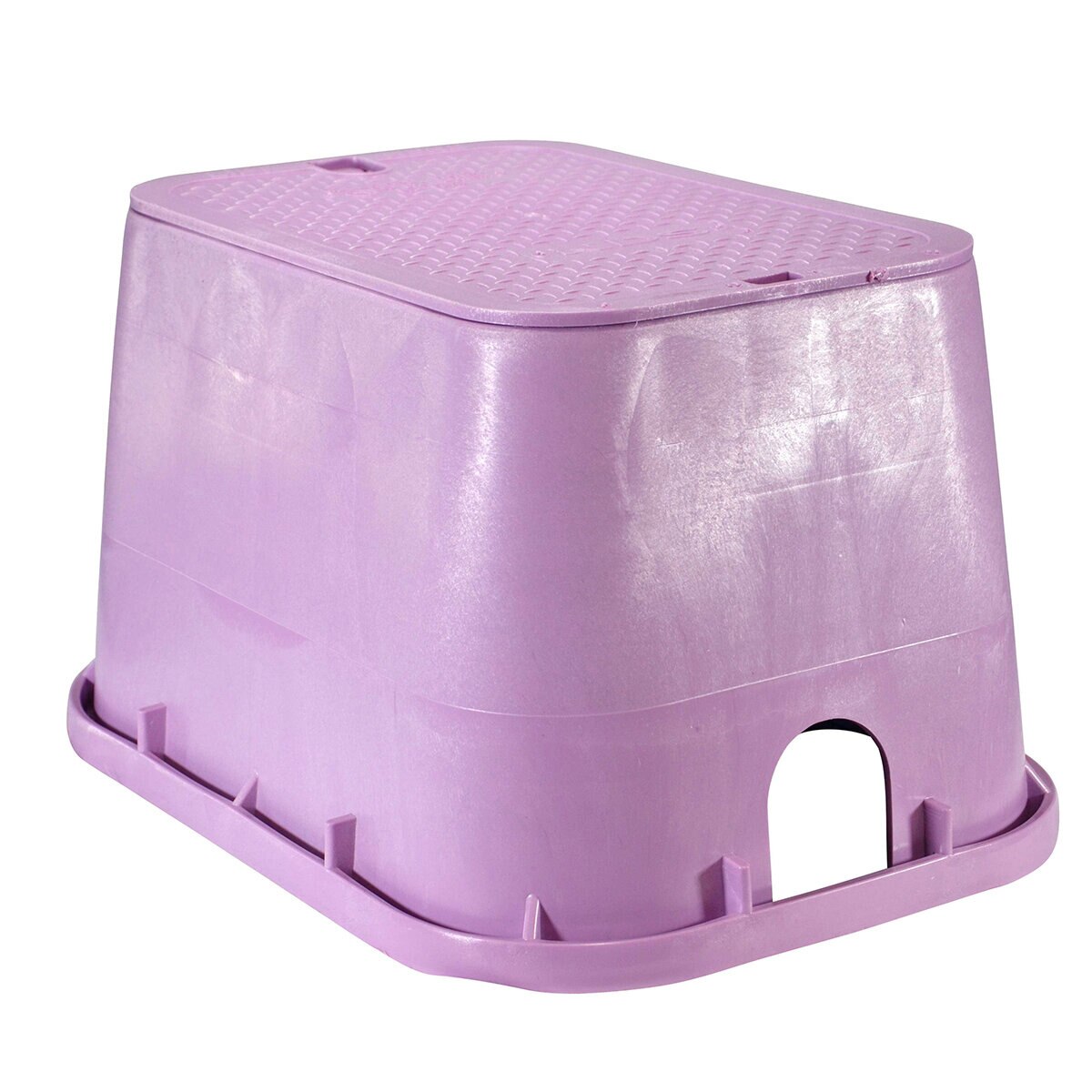

NDS Standard Valve Box Rectangle 14 in. x 19 in. x 12 in.H Purple Box/Purple Lid Overlapping RW

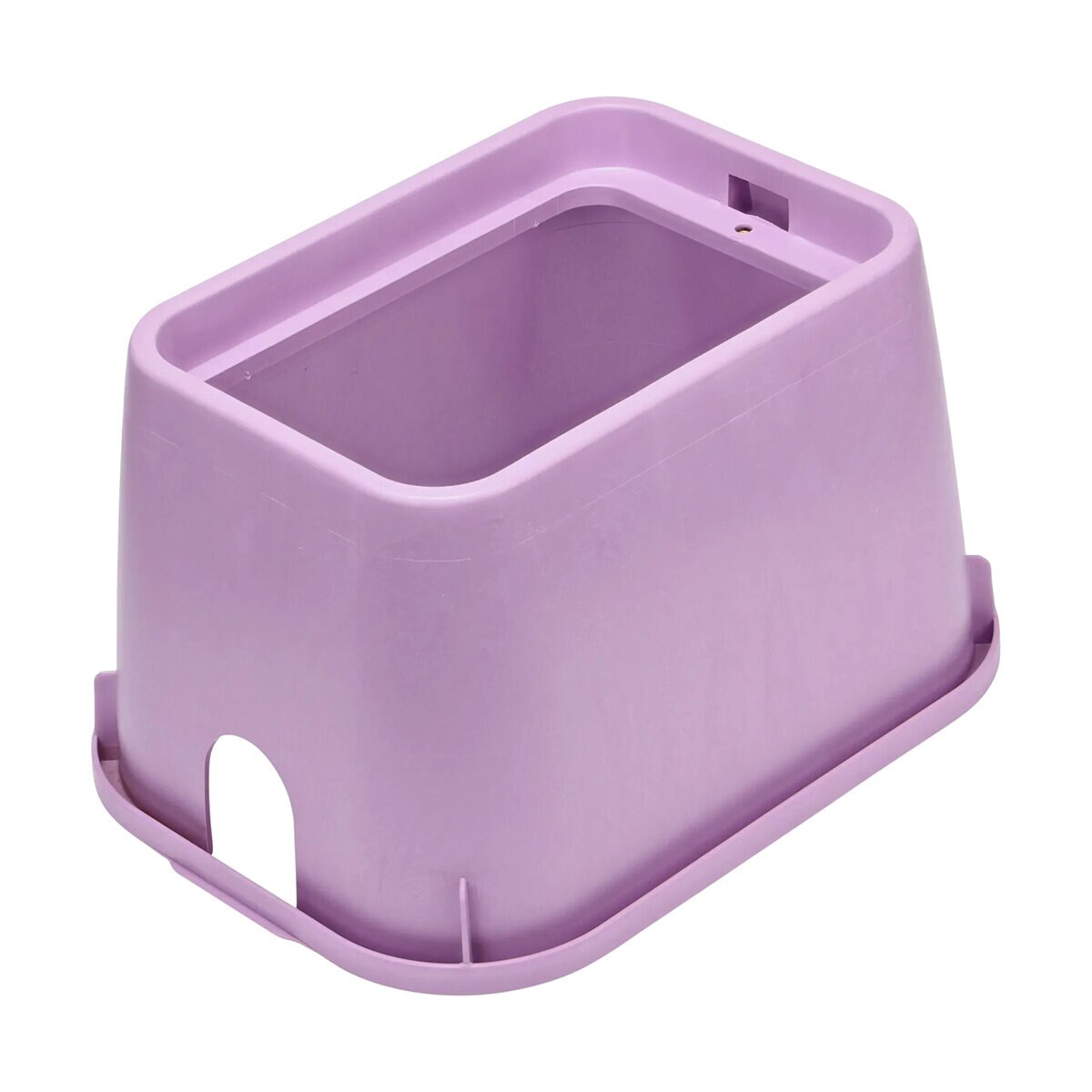

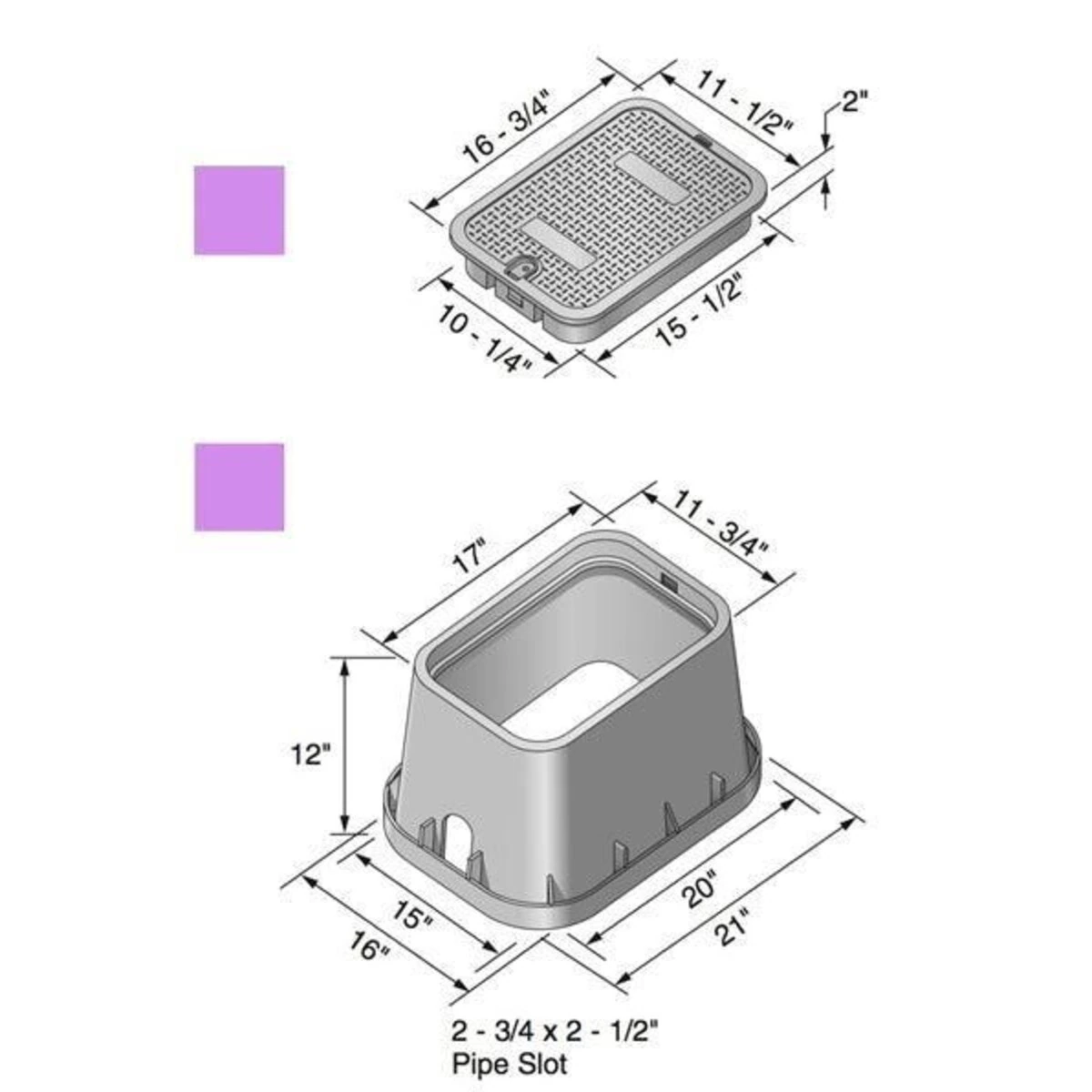

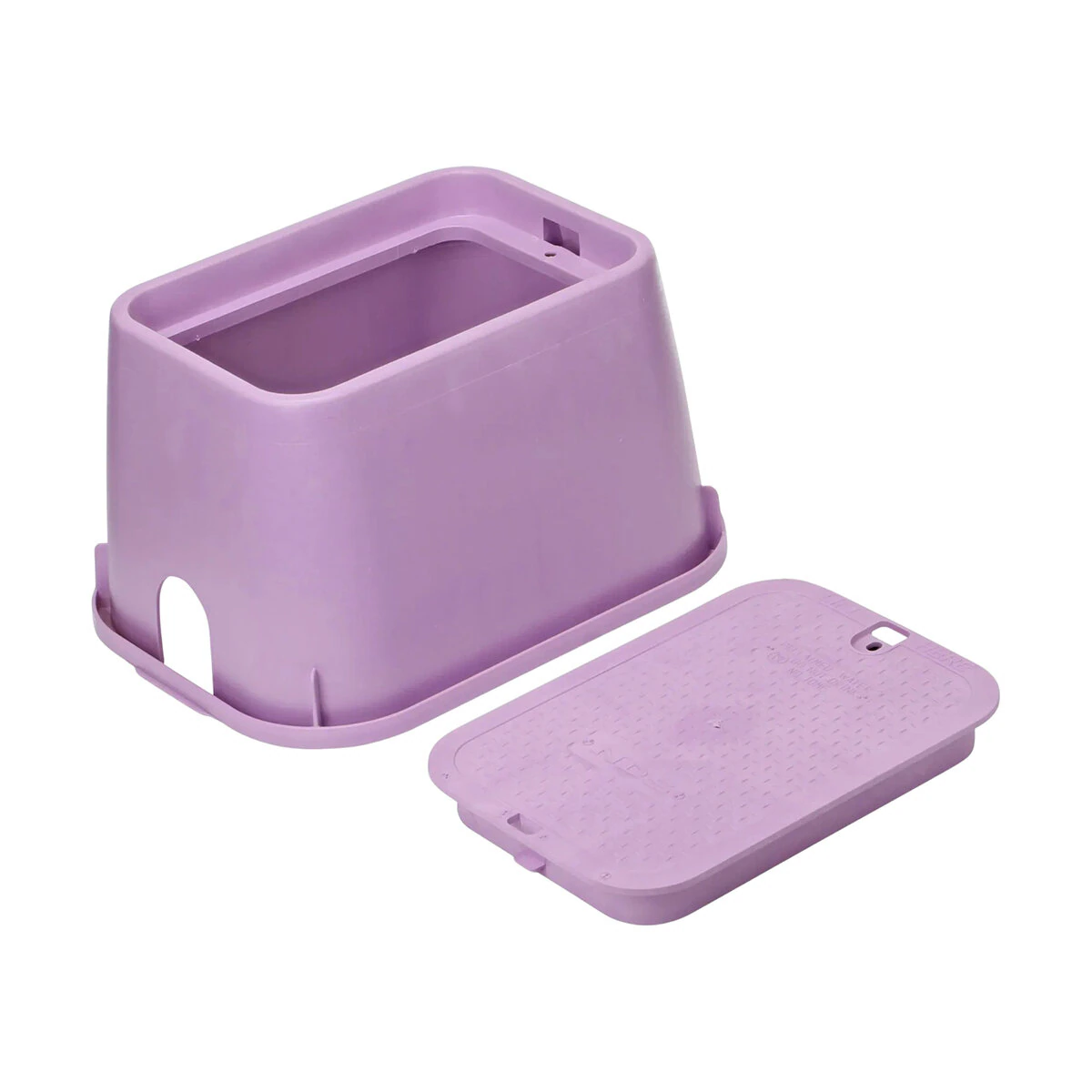

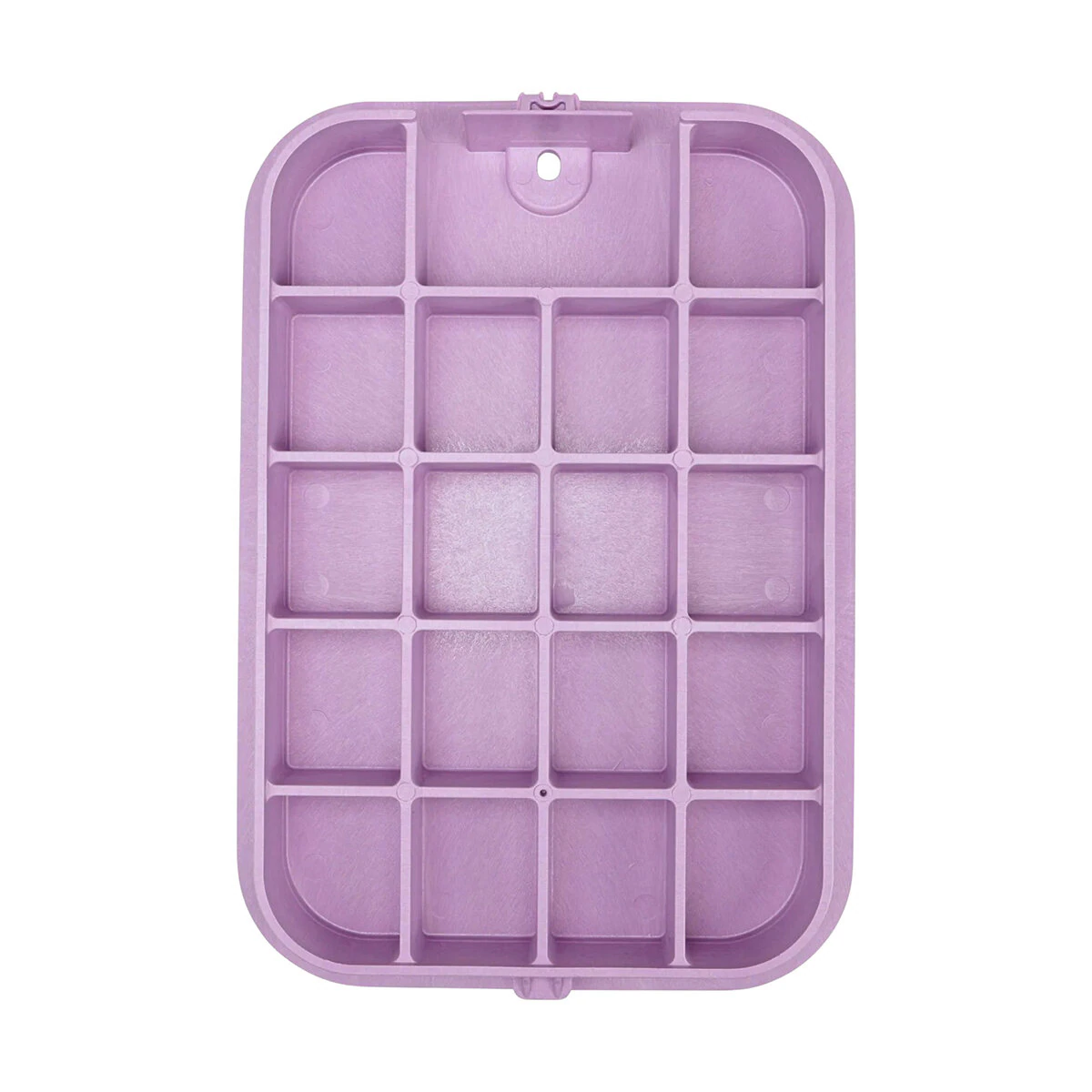

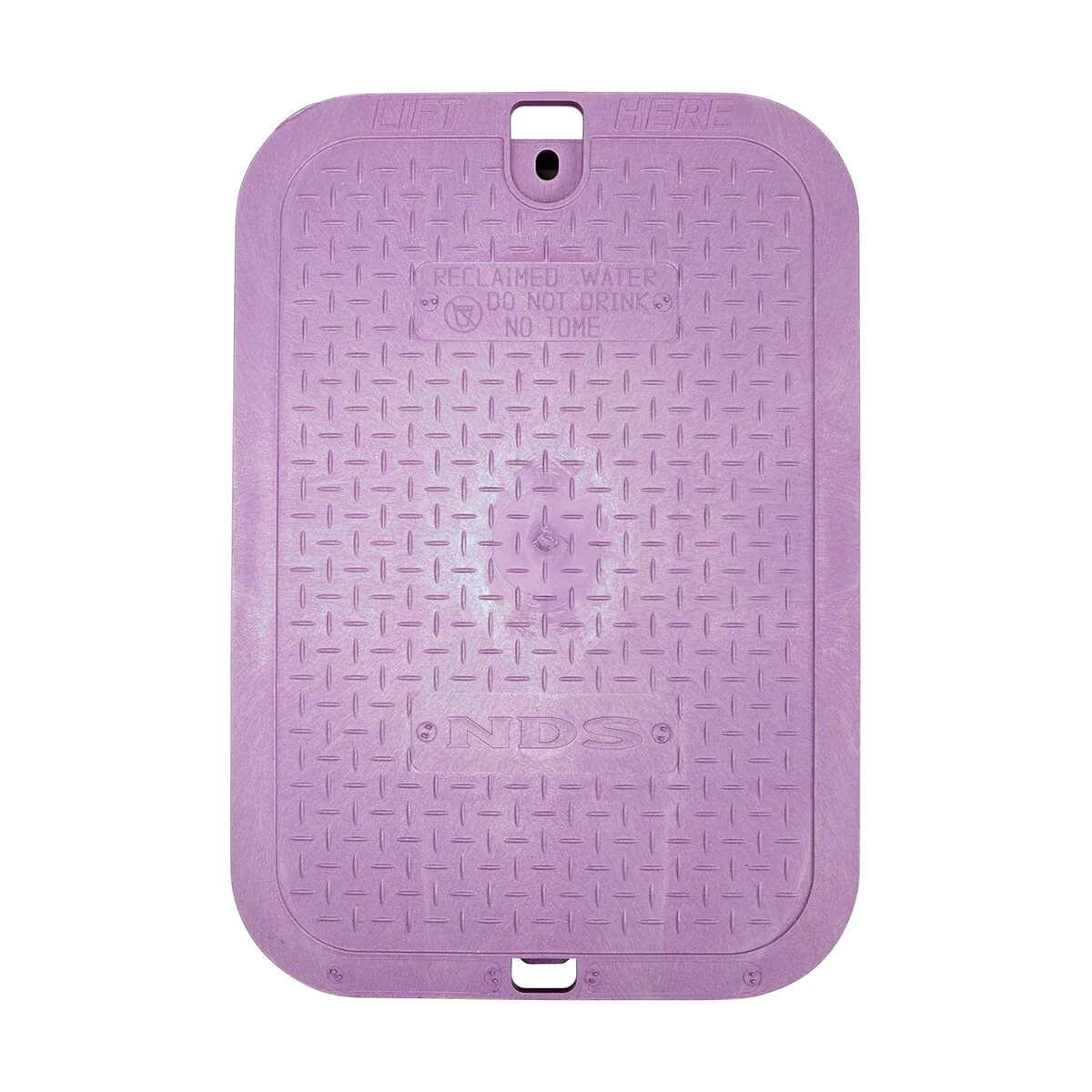

The NDS Standard Series 14 in. x 19 in. body is tapered and has a minimum wall thickness of 0.200 in.. The body has a double wall at the top cover seat area with a minimum thickness of 0.250 in.. The cover seat area has 16 structural support ribs on the underside of the seat, each with a minimum thickness of 0.250 in.. The bottom of the body has a 0.500 in. flange. The 14 in. x 19 in. cover has an average thickness of 0.250 in.. The valve box has a 3/8 in. 304 Brass nut for the bolt-down as a standard feature.
